TTXSW2
Spec #:M24640/5-03UN
MFR #:M24640/5-03UN
GCG #:TTXSW2
Spec #:M24640/5-03UN
MFR #:M24640/5-03UN
GCG #:TTXSW2
Min Qty:1
|Qty Increment:1

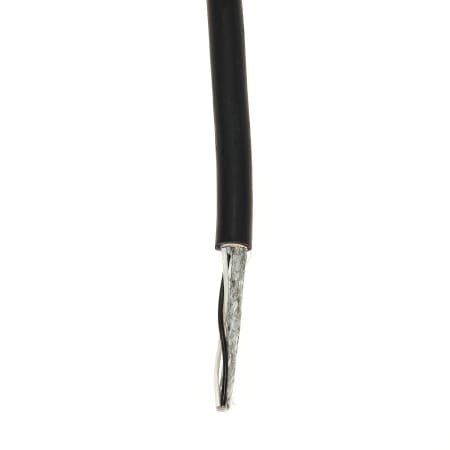

Seacoast USA's M24640/5-03UN (TTXSW2) is a 600V light weight, watertight cable with non-flexing service. M24640/5-03UN has 4 20 AWG conductors with a minimum diameter of 0.38 and a maximum diameter of 0.4 inches. TTXSW2 has a bend radius of 3 inches, and is Individually Shielded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Multipair, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated crosslinked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Two conductors twisted to form a pair, optional binder tape, tinned copper braid shielded, plus a tape shielded isolation. The required number of pairs cabled consecutively, optional binder tape, cross-linked Polyolefin jacket, surface marking. TTXSO: Same construction as TTXS with additional overall optimized tinned copper braided shielded and optional binder tape. TTXSW and TTXSOW: Same construction except 7 strand, Watertight. Standard Identification Code by Method 2.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24640/5-03UN (TTXSW2) is a 600V light weight, watertight cable with non-flexing service. M24640/5-03UN has 4 20 AWG conductors with a minimum diameter of 0.38 and a maximum diameter of 0.4 inches. TTXSW2 has a bend radius of 3 inches, and is Individually Shielded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Multipair, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated crosslinked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Two conductors twisted to form a pair, optional binder tape, tinned copper braid shielded, plus a tape shielded isolation. The required number of pairs cabled consecutively, optional binder tape, cross-linked Polyolefin jacket, surface marking. TTXSO: Same construction as TTXS with additional overall optimized tinned copper braided shielded and optional binder tape. TTXSW and TTXSOW: Same construction except 7 strand, Watertight. Standard Identification Code by Method 2.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialTin-Coated Copper
Conductor Count4
Gauge Size20AWG
Jacket MaterialCross-Linked Polyvinylidene Flouride (PVDF)
Cable Diameter Max (in)0.4
Solid/StrandedStranded
Stranding7
Shielded/UnshieldedIndividually Shielded
Shield TypeTin-Coated Copper Braid
Cable Diameter Min (in)0.38
Electrical Properties
Insulation MaterialCross-Linked Polyalkene
Voltage Rating600V
Physical Properties
Bend Radius (in)3
Weight per Foot0.095
