LSTPNW30
Spec #:M24643/52-07UN
MFR #:M24643/52-07UN
GCG #:LSTPNW30
Spec #:M24643/52-07UN
MFR #:M24643/52-07UN
GCG #:LSTPNW30
Min Qty:1
|Qty Increment:1

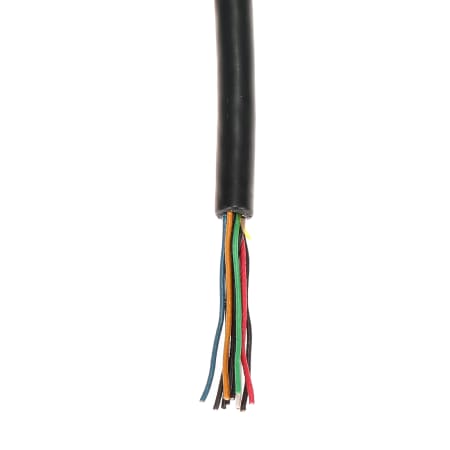

Seacoast USA's M24643/52-07UN (LSTPNW30) is a 300V non-watertight cable with non-flexing service. M24643/52-07UN has 60 22 AWG conductors with a minimum diameter of 0.629 and a maximum diameter of 0.68 inches. LSTPNW30 has a bend radius of 2.5 inches, and is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, thermoset insulation. Telephone Identification Code by Method 3. Two conductors cabled to form a pair. The specified number of pairs cabled consecutively with optional fillers and binder. Crosslinked Polyolefin jacket.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24643/52-07UN (LSTPNW30) is a 300V non-watertight cable with non-flexing service. M24643/52-07UN has 60 22 AWG conductors with a minimum diameter of 0.629 and a maximum diameter of 0.68 inches. LSTPNW30 has a bend radius of 2.5 inches, and is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, thermoset insulation. Telephone Identification Code by Method 3. Two conductors cabled to form a pair. The specified number of pairs cabled consecutively with optional fillers and binder. Crosslinked Polyolefin jacket.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +90°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor Count60
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)0.68
Solid/StrandedStranded
Shielded/UnshieldedUnsheilded
Cable Diameter Min (in)0.629
Electrical Properties
Insulation MaterialThermoset
Voltage Rating300V
Physical Properties
Bend Radius (in)2.5
Weight per Foot0.255
