LSSHOF23
Spec #:M24643/3-02UN
MFR #:M24643/3-02UN
GCG #:LSSHOF23
Spec #:M24643/3-02UN
MFR #:M24643/3-02UN
GCG #:LSSHOF23
Min Qty:1
|Qty Increment:1

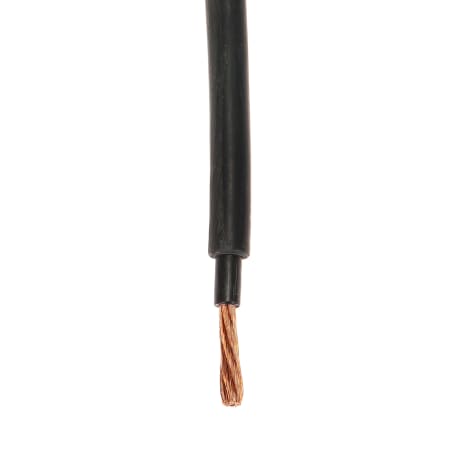

Seacoast USA's M24643/3-02UN (LSSHOF23) is a 600V non-watertight cable with flexing service. M24643/3-02UN has 1 7 AWG conductor with a minimum diameter of 0.44 and a maximum diameter of 0.46 inches. The cable has a bend radius of 3.5 inches, and is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, optional separator, thermoset insulation. Standard Identification Code by Method 1 or 3. Reinforcement on LSSHOF sizes 23 and larger. The required number of conductors cabled with fillers and optional binder tape. Cross-linked Polyolefin jacket.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24643/3-02UN (LSSHOF23) is a 600V non-watertight cable with flexing service. M24643/3-02UN has 1 7 AWG conductor with a minimum diameter of 0.44 and a maximum diameter of 0.46 inches. The cable has a bend radius of 3.5 inches, and is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, optional separator, thermoset insulation. Standard Identification Code by Method 1 or 3. Reinforcement on LSSHOF sizes 23 and larger. The required number of conductors cabled with fillers and optional binder tape. Cross-linked Polyolefin jacket.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +90°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialUncoated Copper
Conductor Count1
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)0.46
Shielded/UnshieldedUnsheilded
Cable Diameter Min (in)0.44
Electrical Properties
Insulation MaterialThermoset
Voltage Rating600V
Physical Properties
Bend Radius (in)3.5
Weight per Foot0.143
