7XW3

7XW4

Spec #:M24640/22-01UN

MFR #:M24640/22-01UN

GCG #:7XW3

Spec #:M24640/22-01UN

MFR #:M24640/22-01UN

GCG #:7XW3

Min Qty:1

  |

Qty Increment:1

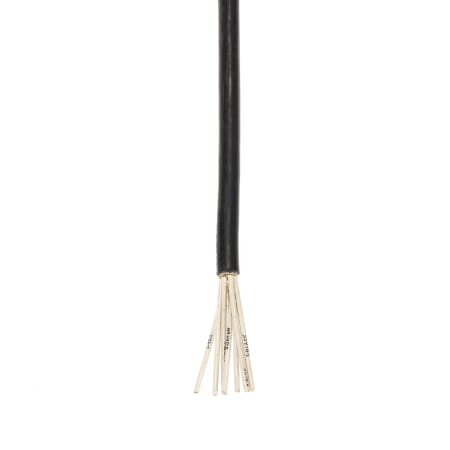

Seacoast USA's M24640/22-01UN (7XW3) is a 600V light weight, watertight cable with non-flexing service with circuit integrity. M24640/22-01UN has 7 16 AWG conductors with a minimum diameter of 0.315 and a maximum diameter of 0.339 inches. 7XW3 has a bend radius of 3 inches, and is Unsheilded with Mica-Glass/Polyimide Tape insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Seven conductor, 7 strand coated or uncoated copper conductor, composite tape wrapped insulation consisting of mica-glass, Polyimide tape and Polyimide-FEP tape with Polyimide coating. Seven conductors cabled, optional binder tape, cross-linked Polyolefin jacket, surface marking. Standard Identification Code by Method 1 or 3.
Requires Quote

Min Qty:1

  |

Qty Increment:1

Seacoast USA's M24640/22-01UN (7XW3) is a 600V light weight, watertight cable with non-flexing service with circuit integrity. M24640/22-01UN has 7 16 AWG conductors with a minimum diameter of 0.315 and a maximum diameter of 0.339 inches. 7XW3 has a bend radius of 3 inches, and is Unsheilded with Mica-Glass/Polyimide Tape insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Seven conductor, 7 strand coated or uncoated copper conductor, composite tape wrapped insulation consisting of mica-glass, Polyimide tape and Polyimide-FEP tape with Polyimide coating. Seven conductors cabled, optional binder tape, cross-linked Polyolefin jacket, surface marking. Standard Identification Code by Method 1 or 3.

Attributes

Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialUncoated Copper
Conductor Count7
Gauge Size16AWG
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)0.339
Solid/StrandedStranded
Stranding7
Shielded/UnshieldedUnsheilded
Cable Diameter Min (in)0.315
Electrical Properties
Insulation MaterialMica-Glass/Polyimide Tape
Voltage Rating600V
Physical Properties
Bend Radius (in)3
Weight per Foot0.11
