DX3
Spec #:M24640/1-01UN
MFR #:M24640/1-01UN
GCG #:DX3
Spec #:M24640/1-01UN
MFR #:M24640/1-01UN
GCG #:DX3
Min Qty:1
|Qty Increment:1

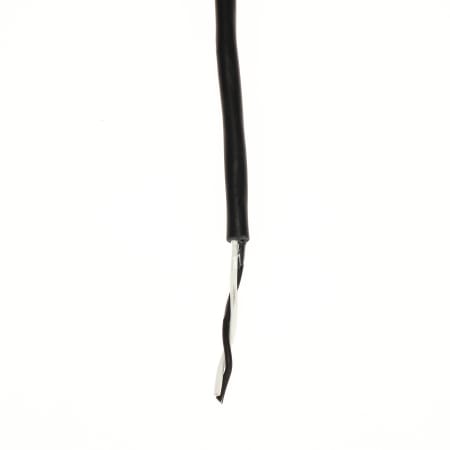

Seacoast USA's M24640/1-01UN (DX3) is a 600V light weight, non-watertight cable with non-flexing service. M24640/1-01UN has 2 16 AWG conductors with a minimum diameter of 0.223 and a maximum diameter of 0.241 inches. DX3 has a bend radius of 2 inches, and is Unsheilded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Two conductor, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated cross-linked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Two conductors cabled, optional binder tape, cross-linked Polyolefin jacket, surface marking. DXWB: Same construction except 7 strand, Watertight. Standard Identification Code by Method 1 or 3.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24640/1-01UN (DX3) is a 600V light weight, non-watertight cable with non-flexing service. M24640/1-01UN has 2 16 AWG conductors with a minimum diameter of 0.223 and a maximum diameter of 0.241 inches. DX3 has a bend radius of 2 inches, and is Unsheilded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Two conductor, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated cross-linked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Two conductors cabled, optional binder tape, cross-linked Polyolefin jacket, surface marking. DXWB: Same construction except 7 strand, Watertight. Standard Identification Code by Method 1 or 3.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialTin-Coated Copper
Conductor Count2
Gauge Size16AWG
Jacket MaterialCross-Linked Polyvinylidene Flouride (PVDF)
Cable Diameter Max (in)0.241
Solid/StrandedStranded
Stranding19
Shielded/UnshieldedUnsheilded
Cable Diameter Min (in)0.223
Electrical Properties
Insulation MaterialCross-Linked Polyalkene
Voltage Rating600V
Physical Properties
Bend Radius (in)2
Weight per Foot0.039
