2XAO7
Spec #:M24640/6-02UO
MFR #:M24640/6-02UO
GCG #:2XAO7
Spec #:M24640/6-02UO
MFR #:M24640/6-02UO
GCG #:2XAO7
Min Qty:1
|Qty Increment:1

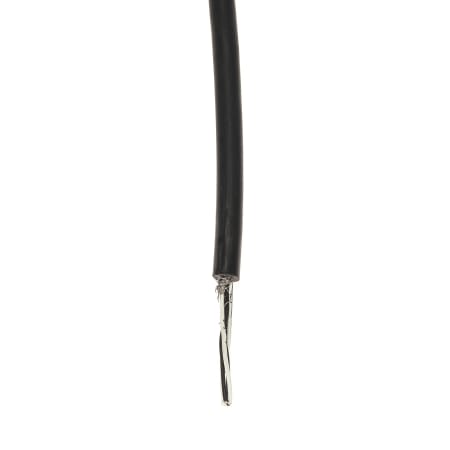

Seacoast USA's M24640/6-02UO (2XAO7) is a 600V light weight, non-watertight cable with non-flexing service. M24640/6-02UO has 14 22 AWG conductors with a minimum diameter of 0.392 and a maximum diameter of 0.422 inches. 2XAO7 has a bend radius of 5 inches, and is Individually Shielded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Multipair, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated crosslinked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Two conductors twisted to form a pair. The required number of pairs cabled consecutively, optional binder tape, overall optimized tinned copper braid shielded, optional binder tape, cross-linked Polyolefin jacket, surface marking. 2XAOW: Same construction except 7 strand, Watertight. Pair Identification Code by Method 6.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24640/6-02UO (2XAO7) is a 600V light weight, non-watertight cable with non-flexing service. M24640/6-02UO has 14 22 AWG conductors with a minimum diameter of 0.392 and a maximum diameter of 0.422 inches. 2XAO7 has a bend radius of 5 inches, and is Individually Shielded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Multipair, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated crosslinked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Two conductors twisted to form a pair. The required number of pairs cabled consecutively, optional binder tape, overall optimized tinned copper braid shielded, optional binder tape, cross-linked Polyolefin jacket, surface marking. 2XAOW: Same construction except 7 strand, Watertight. Pair Identification Code by Method 6.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialTin-Coated Copper
Conductor Count14
Jacket MaterialCross-Linked Polyvinylidene Flouride (PVDF)
Cable Diameter Max (in)0.422
Solid/StrandedStranded
Stranding19
Shielded/UnshieldedIndividually Shielded
Shield TypeTin-Coated Copper Braid
Cable Diameter Min (in)0.392
Electrical Properties
Insulation MaterialCross-Linked Polyalkene
Voltage Rating600V
Physical Properties
Bend Radius (in)5
Weight per Foot0.131
