TXWB3
Spec #:M24640/2-03UN
MFR #:M24640/2-03UN
GCG #:TXWB3
Spec #:M24640/2-03UN
MFR #:M24640/2-03UN
GCG #:TXWB3
Min Qty:1
|Qty Increment:1

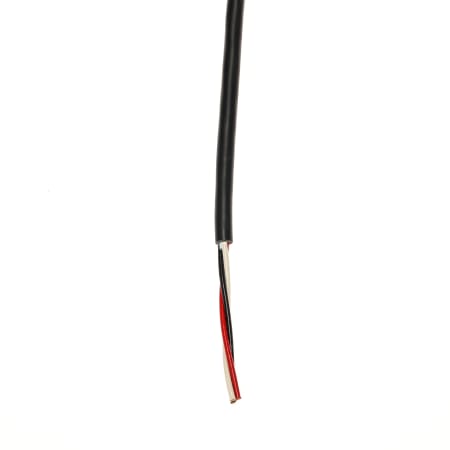

Seacoast USA's M24640/2-03UN (TXWB3) is a 600V light weight, watertight cable with non-flexing service with circuit integrity. M24640/2-03UN has 3 16 AWG conductors with a minimum diameter of 0.255 and a maximum diameter of 0.265 inches. TXWB3 has a bend radius of 2 inches, and is Unsheilded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Three conductor, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated cross-linked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Three conductors cabled, optional binder tape, cross-linked Polyolefin jacket, surface marking. TXWB: Same construction except 7 strand, Watertight. Standard Identification Code by Method 1 or 3.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24640/2-03UN (TXWB3) is a 600V light weight, watertight cable with non-flexing service with circuit integrity. M24640/2-03UN has 3 16 AWG conductors with a minimum diameter of 0.255 and a maximum diameter of 0.265 inches. TXWB3 has a bend radius of 2 inches, and is Unsheilded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Three conductor, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated cross-linked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Three conductors cabled, optional binder tape, cross-linked Polyolefin jacket, surface marking. TXWB: Same construction except 7 strand, Watertight. Standard Identification Code by Method 1 or 3.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialTin-Coated Copper
Conductor Count3
Gauge Size16AWG
Jacket MaterialCross-Linked Polyvinylidene Flouride (PVDF)
Cable Diameter Max (in)0.265
Solid/StrandedStranded
Stranding7
Shielded/UnshieldedUnsheilded
Cable Diameter Min (in)0.255
Electrical Properties
Insulation MaterialCross-Linked Polyalkene
Voltage Rating600V
Physical Properties
Bend Radius (in)2
Weight per Foot0.06
